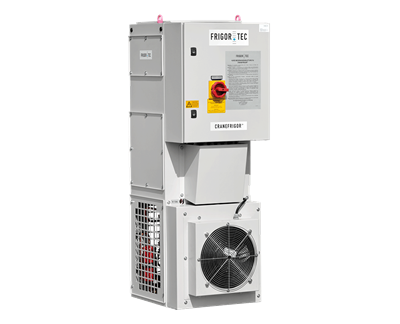

The CRANEFRIGOR™ container coolers for climate control of electronics containers in different industries. The temperature can be selected individually. The sucked-in air is mixed with pre-filtered fresh air, filtered and brought to the desired temperature. A slight overpressure is thereby created in the container room, which prevents dust entering from the outside. The desired container temperature is individually selectable.
Dimensioner [mm] L x B x H vertikal horisontell
670 x 520 x 1.520 -
Vikt ca: [kg] vertikal / horisontell
180 / -
Kylkapacitet [kW] med R134a *1) vid rumstemperatur 26 - 40°C
3,9 - 5,1
Kylkapacitet [kW] med R227ea *1) vid rumstemperatur 26 - 40°C
On request
Kylkapacitet [kW] med R124 *1) vid rumstemperatur 26 - 40°C
-
Kylkapacitet [kW] med R236fa *1) vid rumstemperatur 26 - 40°C
Luftflöde, friblåsande [m3/h]
2.000
* Andra köldmedier på begäran. 1) Vid omgivningstemperatur på 50°C. Kylkapaciteten är beroende av omgivningstemperaturen, köldmediet och förhållandena i lokalen. 2) Förångare väljs individuellt.
Driftbegränsningar för köldmedier: R134a; omgivningstemperatur 65°C R227ea; omgivningstemperatur 75°C R124; omgivningstemperatur 90°C R236fa; omgivningstemperatur 90°C
Förbehåll för tekniska ändringar
